Tube Mill Line#2 (Max Ø60.5mm * Ø114.3mm)

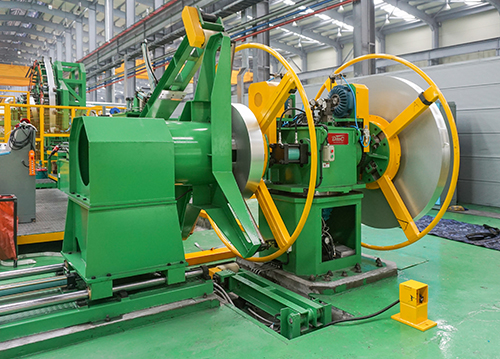

  • Uncoiler (Double Drums & Swivel)

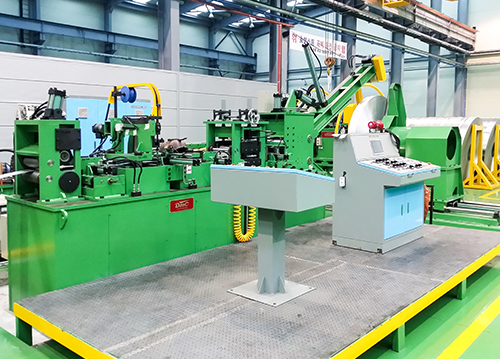

  • Coil Opener & Pinch Leveler
  • Shear & End Welder Machine

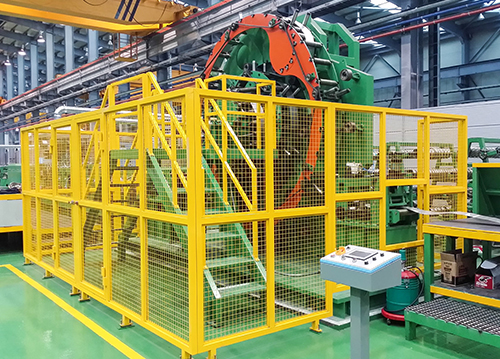

  • Rotary Accumulator (Vertical Type)

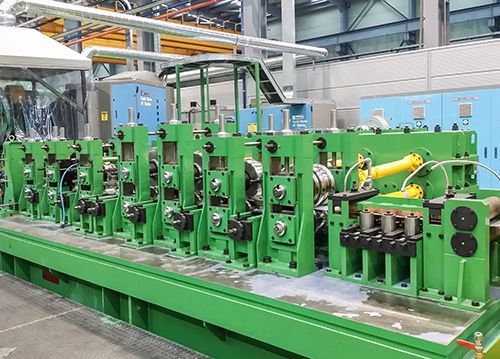

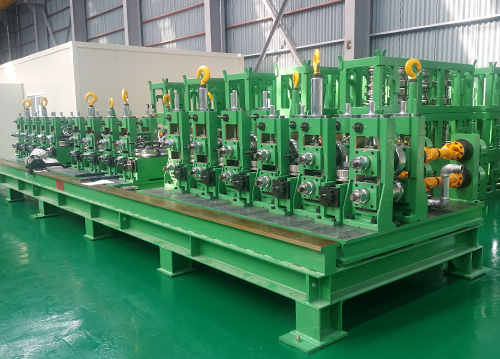

  • Forming Roll Stands

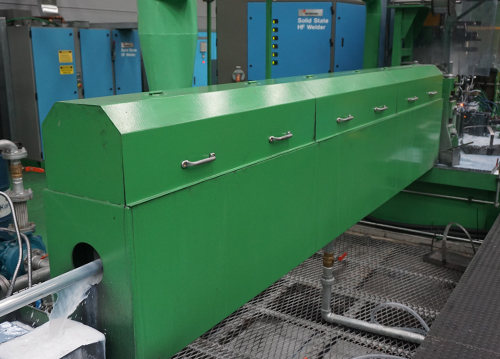

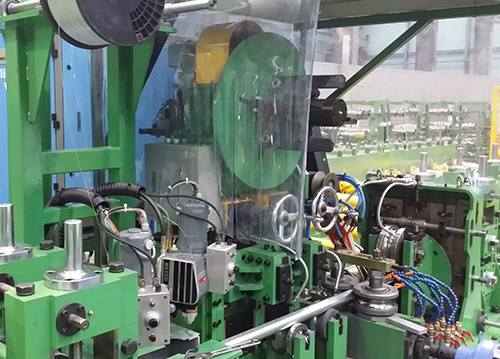

  • High Frequency Welding

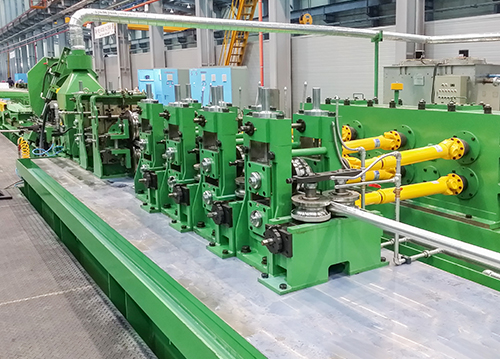

  • Sizing Roll Stands
  • Quick Change System (Bed Change Type)

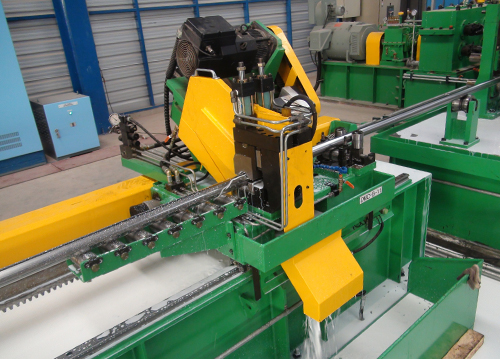

  • Cold Saw Cut-off Machine
  • End Facing & Chamfering Machine

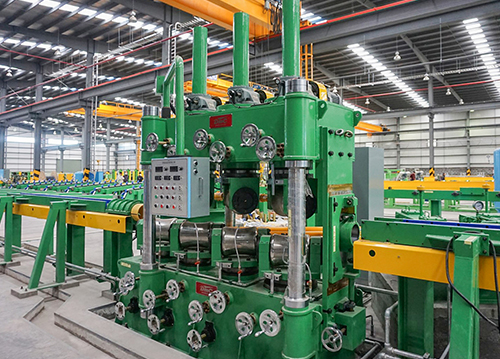

  • Straightening Machine

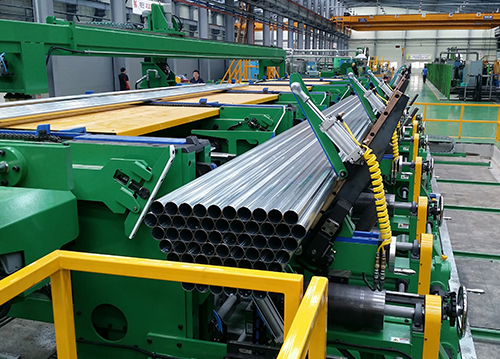

  • Auto Packing System (Fork Type)

Specification of Standard Tube Mill

Specification
Model Tube Diameter (mm) Thickness (mm)
DMC-TM21A Φ25.4 ~ Φ60.5 1.4 ~ 6.0
DMC-TM22A Φ25.4 ~ Φ76.3 1.0 ~ 4.0
DMC-TM22B Φ31.8 ~ Φ76.3 1.4 ~ 6.0
DMC-TM22C Φ38.1 ~ Φ76.3 1.4 ~ 8.0
DMC-TM23A Φ31.8 ~ Φ89.1 1.4 ~ 4.5
DMC-TM23B Φ31.8 ~ Φ89.1 1.4 ~ 6.0
DMC-TM23C Φ31.8 ~ Φ89.1 1.4 ~ 9.0
DMC-TM24A Φ38.1 ~ Φ114.3 1.4 ~ 4.5
DMC-TM24B Φ38.1 ~ Φ114.3 1.4 ~ 6.0
DMC-TM24C Φ38.1 ~ Φ114.3 1.4 ~ 9.0
DMC-TM24D Φ38.1 ~ Φ114.3 2.34 ~ 11.0
