Tube Mill Line#4 (Max Ø219.1mm * Ø355.6mm)

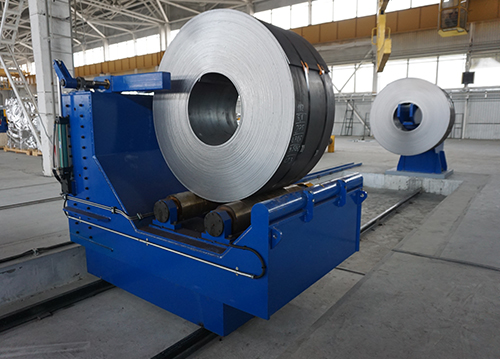

  • Coil Lifting Car & Coil Opener

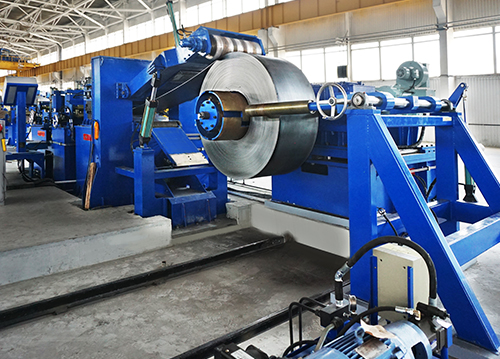

  • Uncoiler (Single Drum & Center Adjusting)

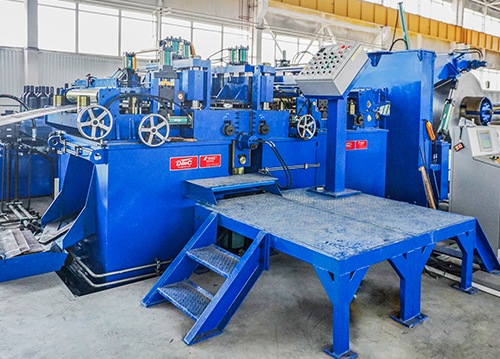

  • Shear & End Welder Machine

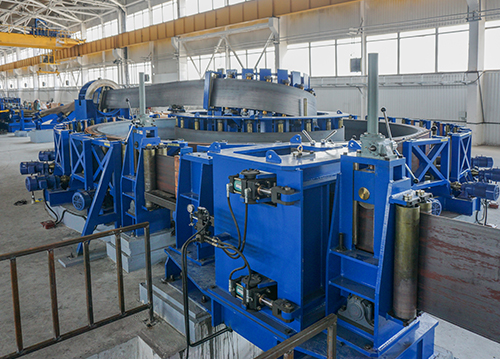

  • Spiral Accumulator (Horizontal Type)

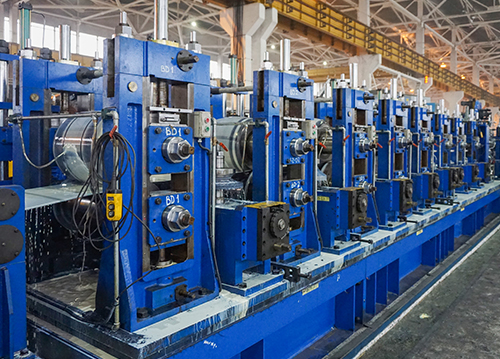

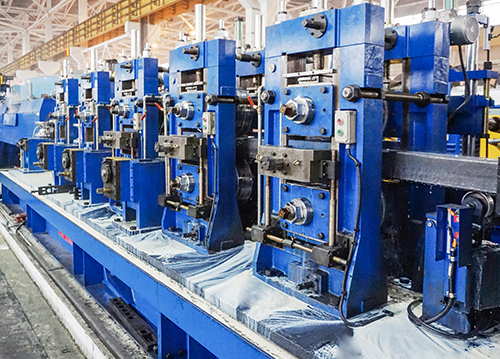

  • Forming Roll Stands

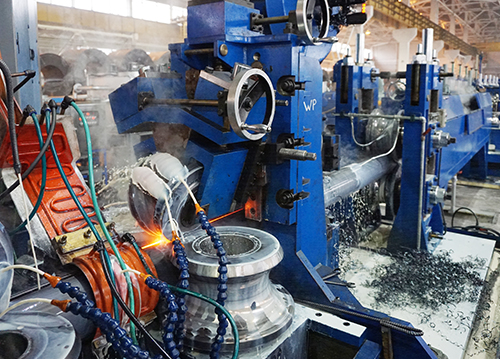

  • High Frequency Welding
  • Sizing Roll Stands
  • Quick Change System (Quick Coupler Type)

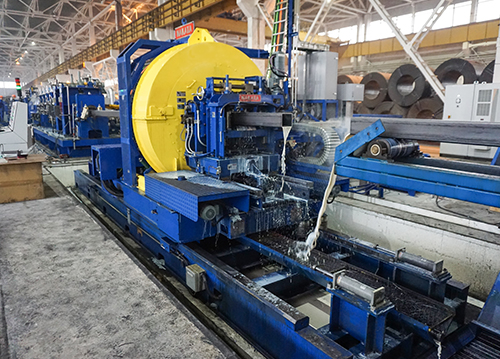

  • 2-Blade Milling Cut-off Machine

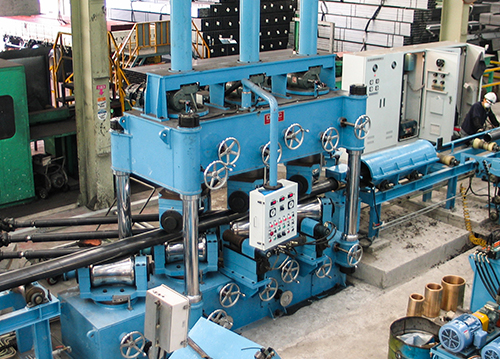

  • Straightening Machine
  • End Facing & Chamfering Machine

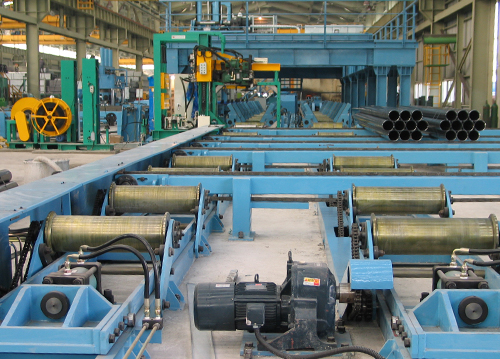

  • Auto Packing System (Magnet Type)

Specification of Standard Tube Mill

Specification
Model Tube Diameter (mm) Thickness (mm)
DMC-TM41A Φ76.3 ~ Φ319.1 2.3 ~ 10.0
DMC-TM41B Φ76.3 ~ Φ254.0 2.3 ~ 10.0
DMC-TM42A Φ89.1 ~ Φ273.1 2.3 ~ 10.0
DMC-TM42B Φ89.1 ~ Φ273.1 3.2 ~ 12.7
DMC-TM43A Φ101.6 ~ Φ323.9 3.2 ~ 12.7
DMC-TM44A Φ114.3 ~ Φ355.6 3.2 ~ 12.7
