Tube Painting Line



  • Auto Insertion System
  • Loading and Walking Unit
  • Washing Unit

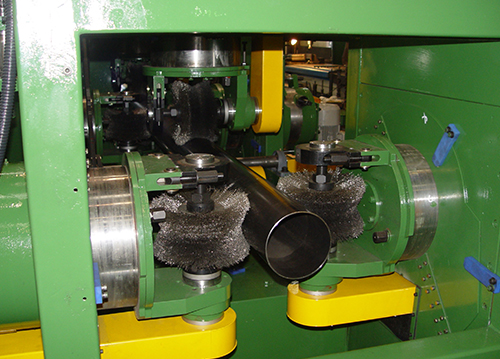

  • Brushing

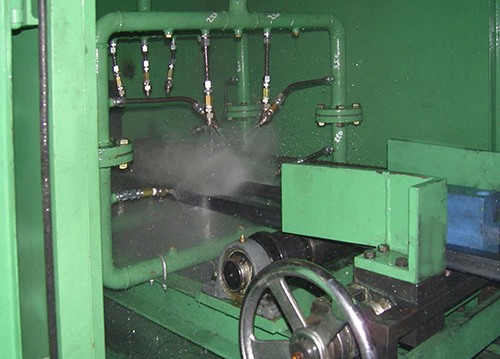

  • Water Rinsing and Air Blowing

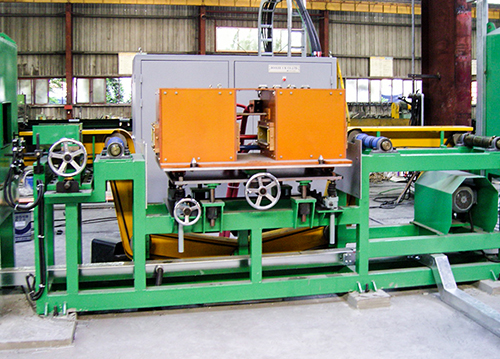

  • Medium Frequency Preheating Furnace

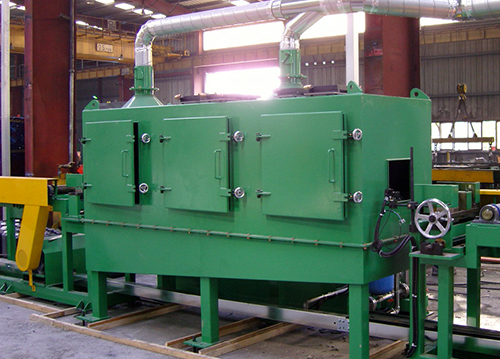

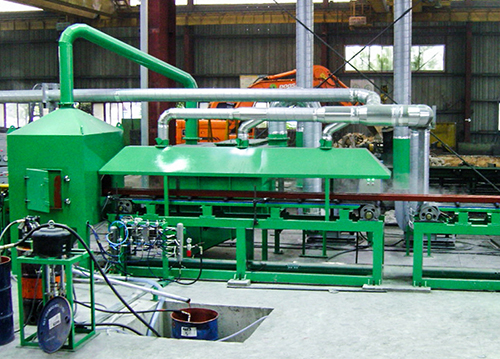

  • Paint Booth

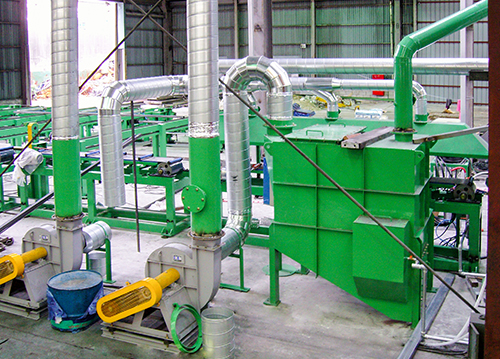

  • Ventilating System
  • Loading Unit

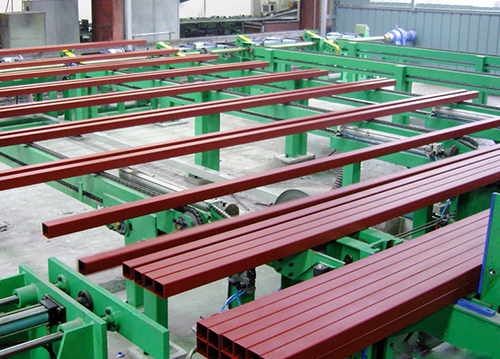

  • Drying Chain Conveyor (Horizontal Type)

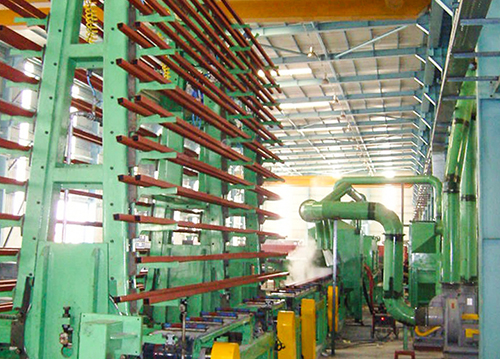

  • Drying Elevator (Vertical Type)

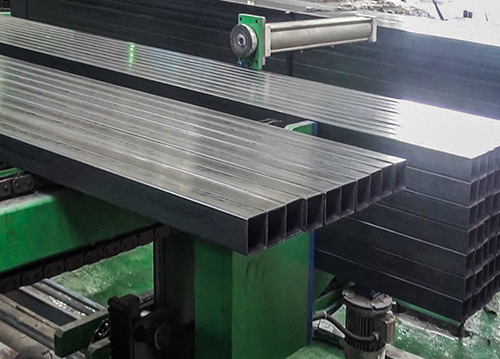

  • Packing System

Standard Technical Specification

Specification
Models Tube Outer Diameter Line Speed
Round Square
mm mm m/min
DMC-PL11A 25.4 ~ 89.1 20x20 ~ 75x75 Max. 100
DMC-PL21A 31.8 ~ 127.0 25x25 ~ 100x100 Max. 75
DMC-PL31A 38.1 ~ 190.7 30x30 ~ 150x150 Max. 60
DMC-PL41A 89.1 ~ 254.0 80x80 ~ 200x200 Max. 60
DMC-PL51A 127.0 ~ 355.6 100x100 ~ 250x250 Max. 45
