Coil Slitting Line

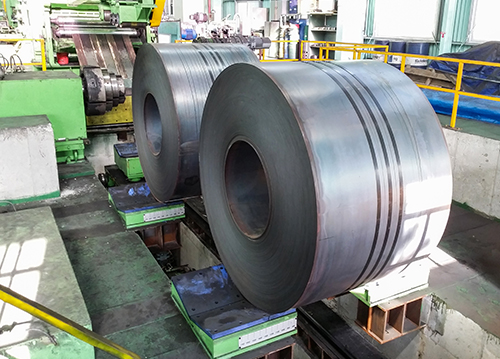

  • Entry Coil Car

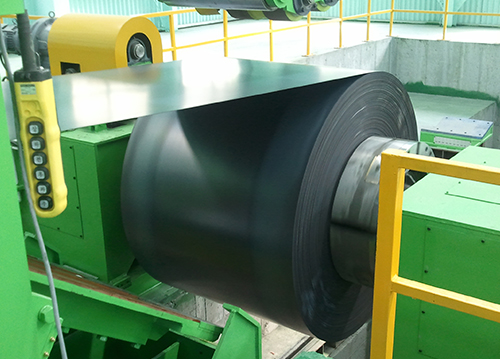

  • Uncoiler
  • Coil Opener and Peeler
  • Pinch Roll

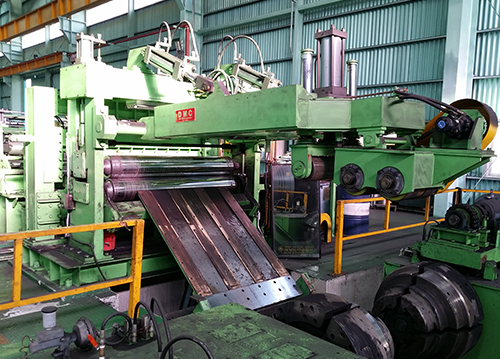

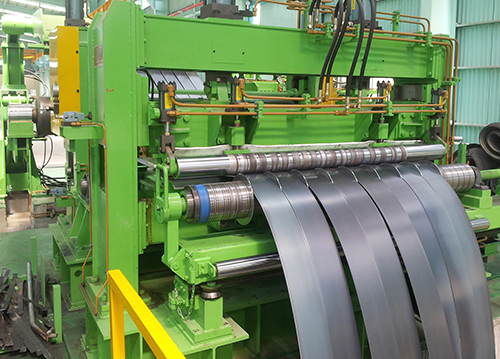

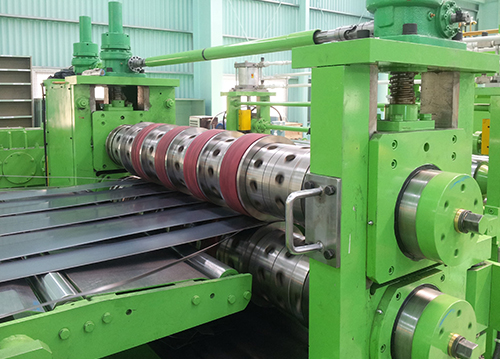

  • Slitter

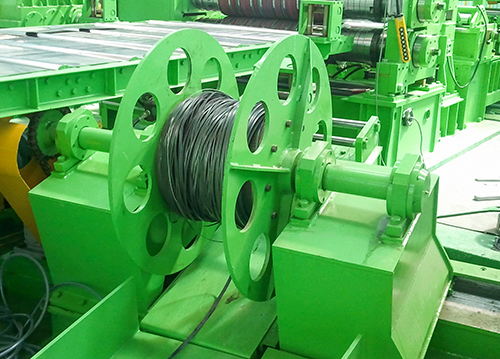

  • Scrap Winder
  • Threading Table

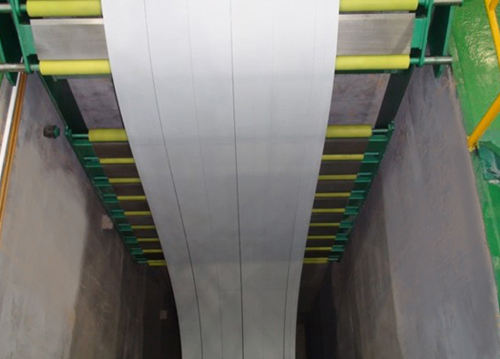

  • Loop Table

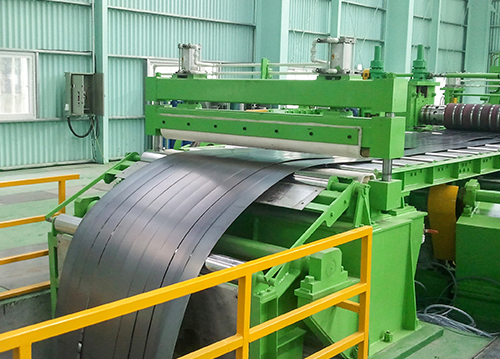

  • Separator with Tension Pad
  • Bridle Roll with Guide Table

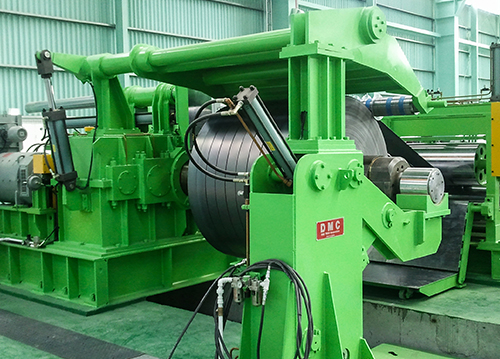

  • Recoiler

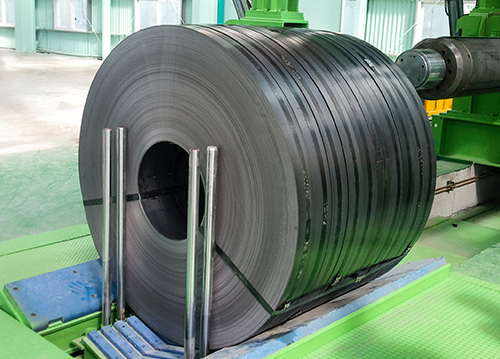

  • Exit Coil Car

Standard Technical Specification

Specification
Models Coil Width Wall Thickness Line Speed
mm mm m/min
DMC-SL11A Max. 1,550 0.5 ~ 2.3 Max. 100 / 150
DMC-SL12A Max. 1,550 0.5 ~ 3.2 Max. 100 / 150
DMC-SL21A Max. 1,550 0.8 ~ 4.5 Max. 100 / 150
DMC-SL22A
DMC-SL22B
Max. 1,550
Max. 1,650
0.8 ~ 6.0
0.8 ~ 6.0
Max. 75 / 150
Max. 75 / 150
DMC-SL31A
DMC-SL31B
Max. 1,550
Max. 1,650
1.0 ~ 8.0
1.0 ~ 8.0
Max. 60 / 120
Max. 60 / 120
DMC-SL32A
DMC-SL32B
Max. 1,550
Max. 1,650
1.0 ~ 10.0
1.0 ~ 10.0
Max. 60 / 120
Max. 60 / 120
