Tube Mill Line#3 (Max Ø127.0mm * Ø190.7mm)

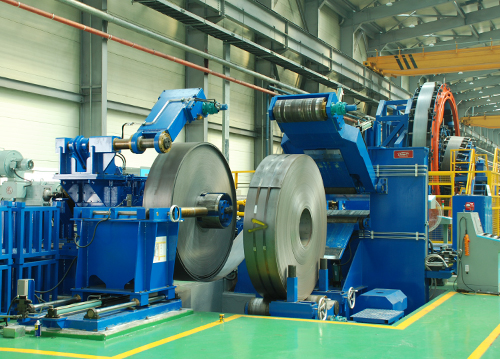

  • Coil Lifting Car with Coil Opener
  • Uncoiler (Single Drum & Center Adjusting)

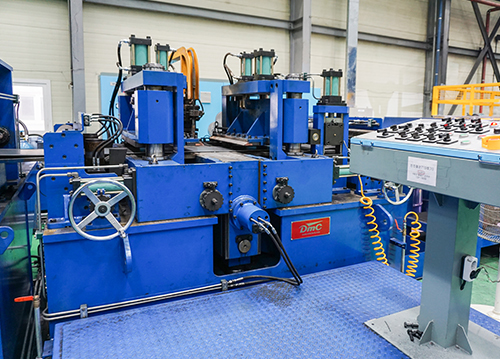

  • Shear & End Welder Machine

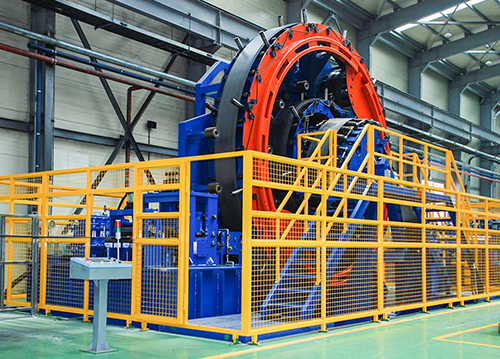

  • Rotary Accumulator (Vertical Type)

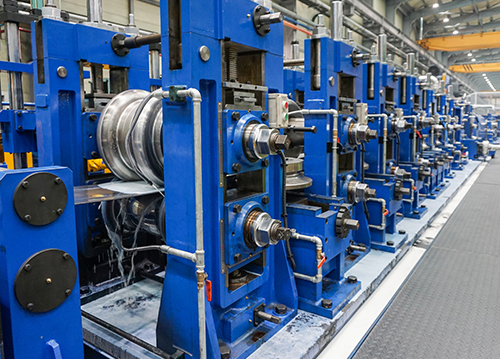

  • Forming Roll Stands

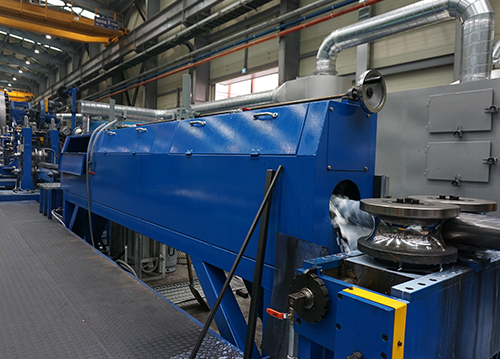

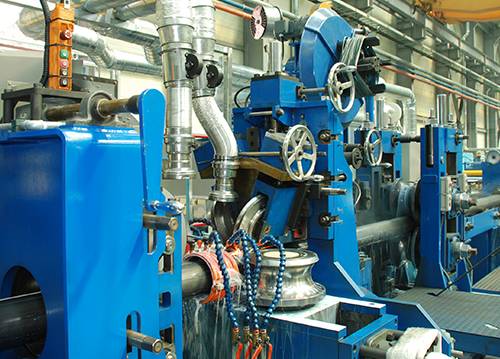

  • High Frequency Welding

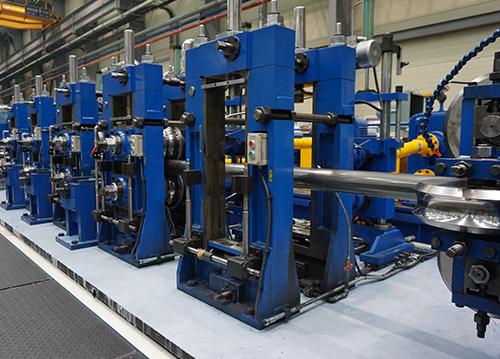

  • Sizing Roll Stands

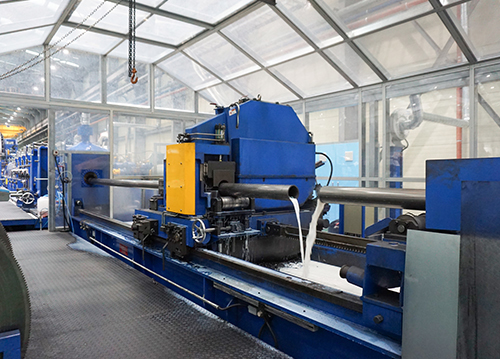

  • Friction Saw Cut-off Machine

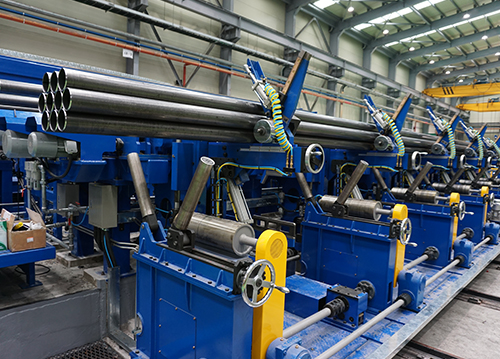

  • Straightening Machine
  • End Facing & Chamfering Machine
  • Air Blowing System
  • Auto Packing System (Fork Type)

Specification of Standard Tube Mill

Specification
Model Tube Diameter (mm) Thickness (mm)
DMC-TM31A Φ38.0 ~ Φ127.0 1.2 ~ 4.5
DMC-TM31B Φ38.0 ~ Φ127.0 1.2 ~ 6.0
DMC-TM31C Φ42.7 ~ Φ139.8 1.2 ~ 4.5
DMC-TM31D Φ42.7 ~ Φ139.8 1.4 ~ 6.0
DMC-TM31E Φ42.7 ~ Φ139.8 1.4 ~ 9.0
DMC-TM32A Φ50.8 ~ Φ168.3 1.4 ~ 6.0
DMC-TM32B Φ50.8 ~ Φ168.3 2.0 ~ 8.0
DMC-TM32C Φ50.8 ~ Φ168.3 2.3 ~ 10.0
DMC-TM33A Φ60.5 ~ Φ190.7 1.4 ~ 6.0
DMC-TM33B Φ60.5 ~ Φ190.7 2.0 ~ 8.0
DMC-TM33C Φ60.5 ~ Φ190.7 2.3 ~ 10.0
